1120

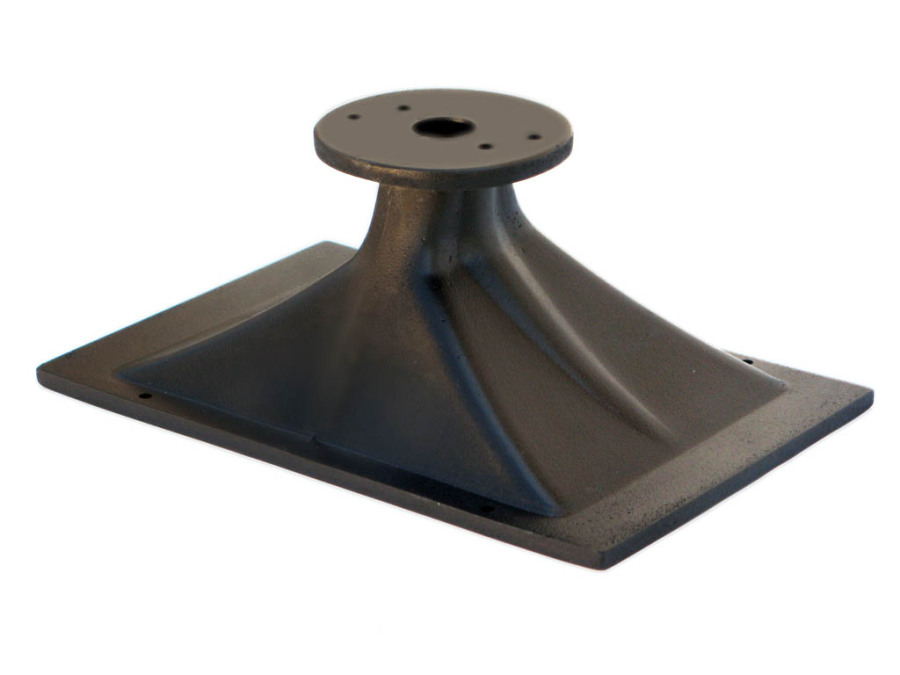

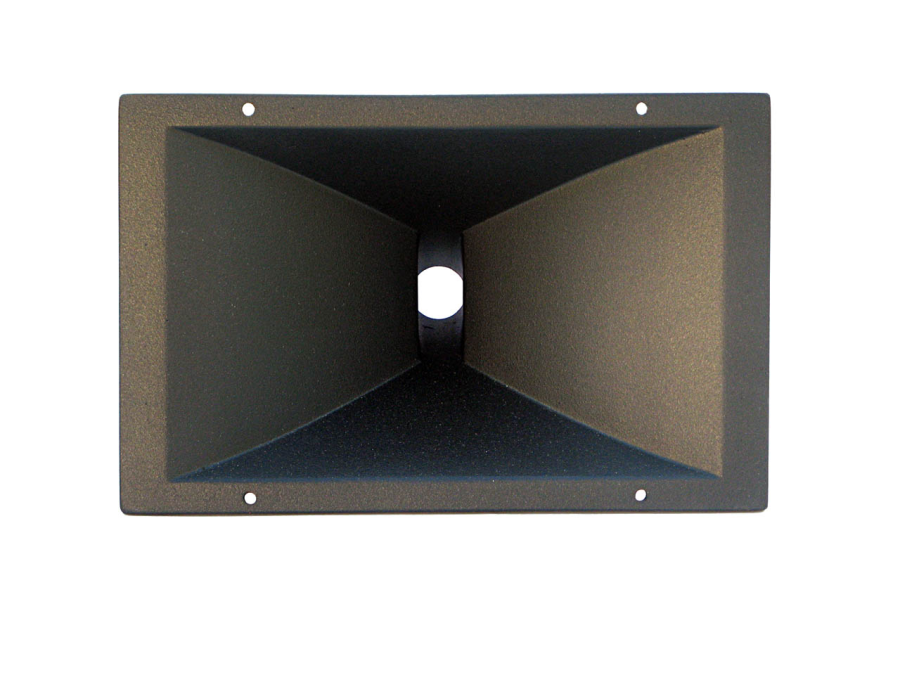

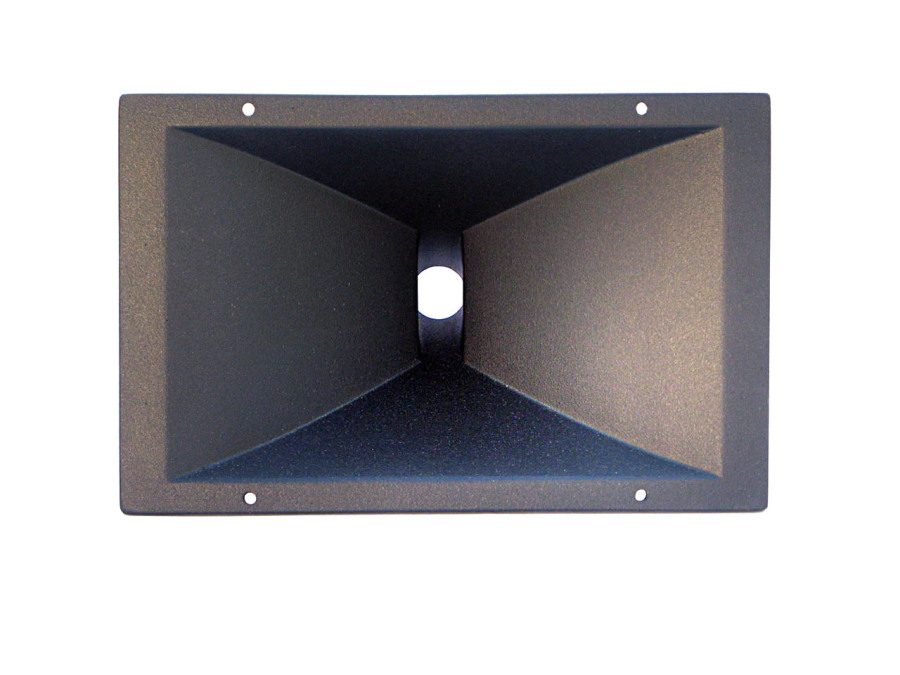

1" 120° x 60° constant directivity horn

bandwidth               from 1000 Hz upwards

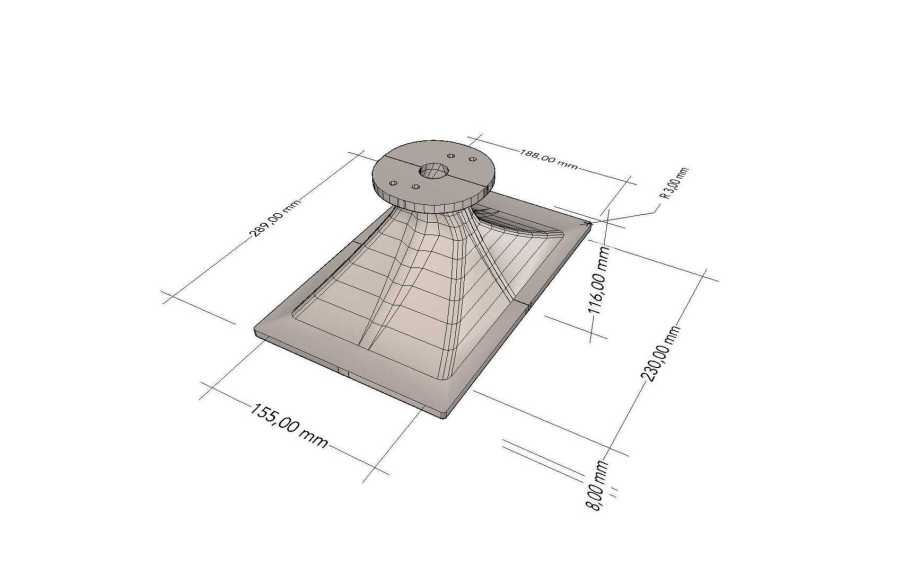

w x h x d                      29 x 19 x 16,5 cm

     11.4" x 7.5" x 4.6"

baffle cutout                           230 x 155 mm
weight                                       0,6 kg
material                                            PU
throat Ø                                             1"

driver mounting    two 6.5 mm holes on 76mm ø

two 6.5 mm holes on 57mm ø

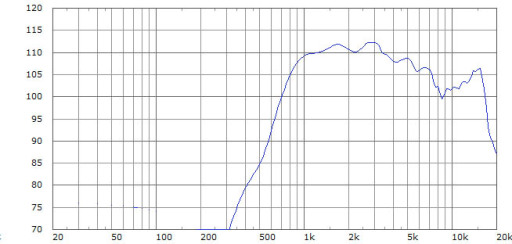

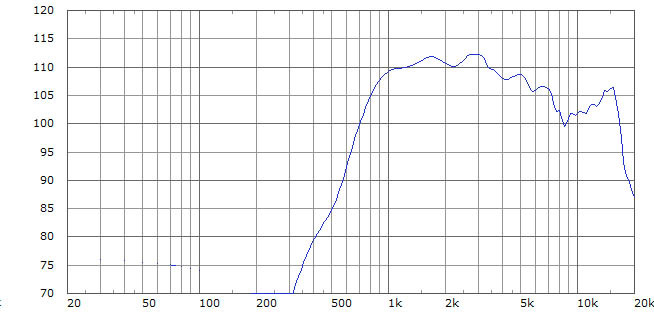

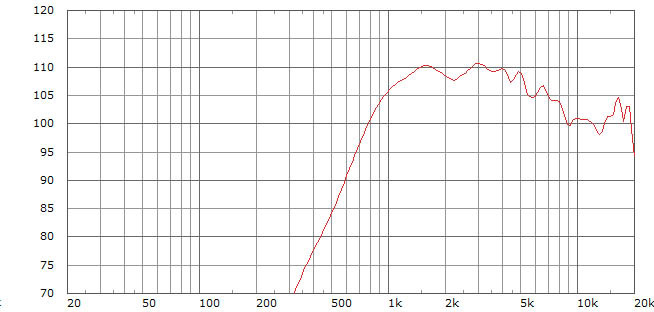

B&C DE550 2,83V 1m

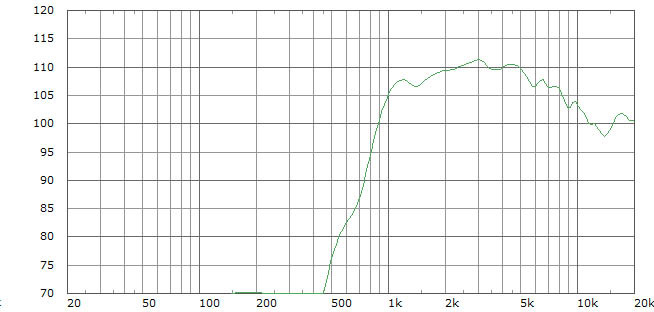

B&C DE360 2,83V 1m

B&C DH450/16Ω 4V 1m

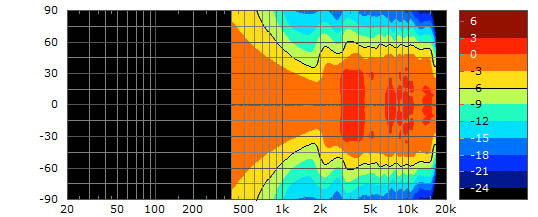

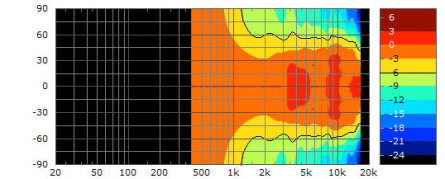

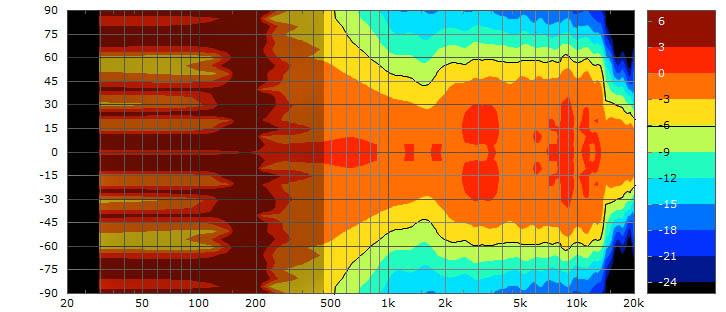

horizontal

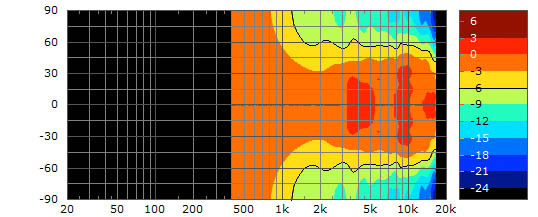

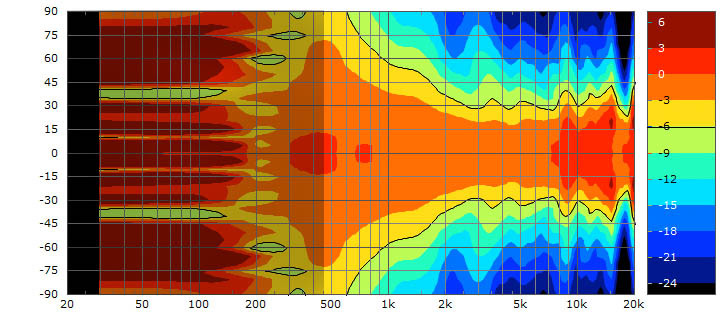

vertical

All measurements without cabinet or baffle 0.1 oct smoothed

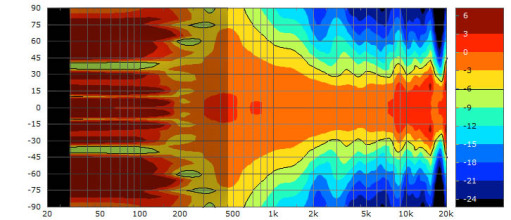

Following simulation results illustrate the impact of the surrounding:
